Waterbox Aquariums

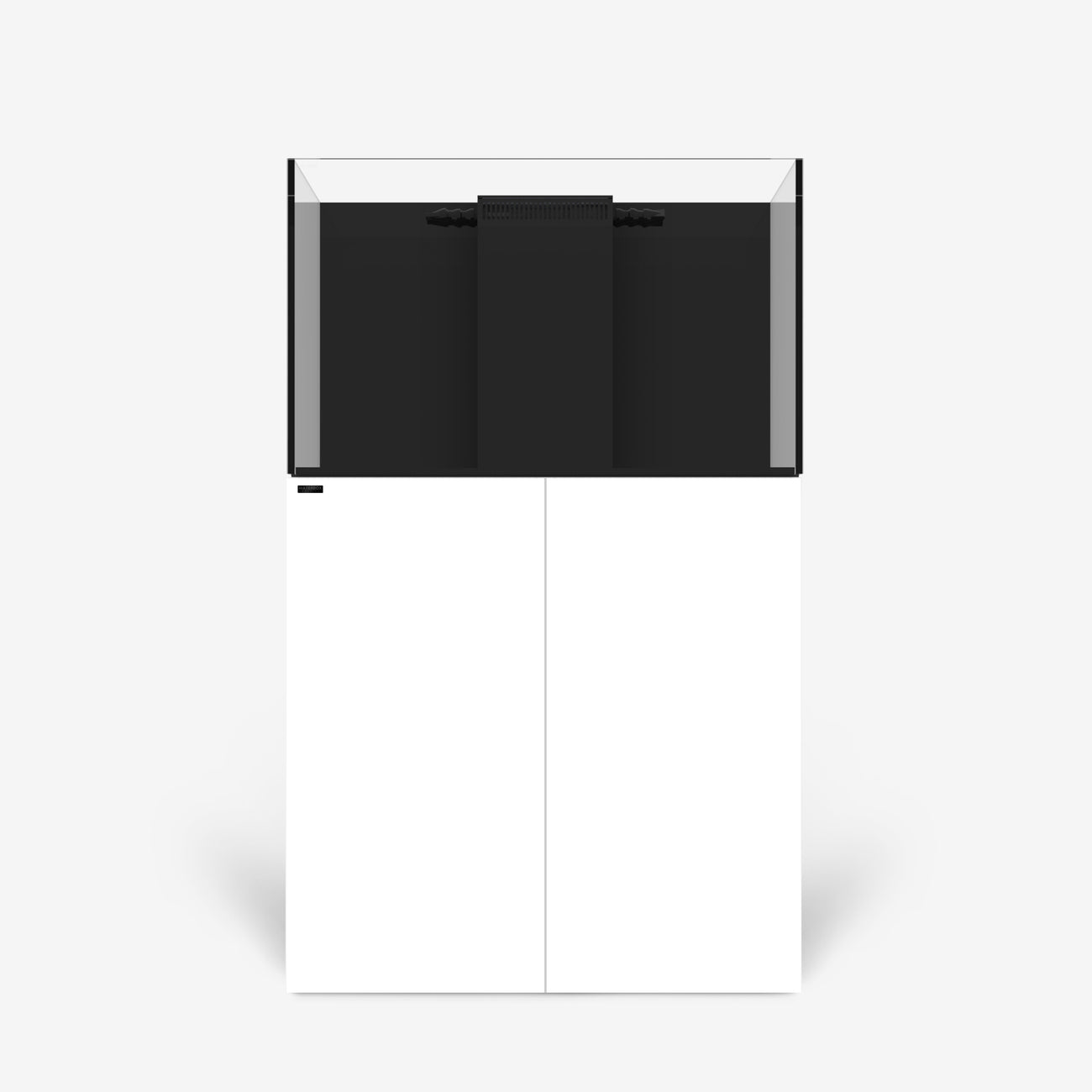

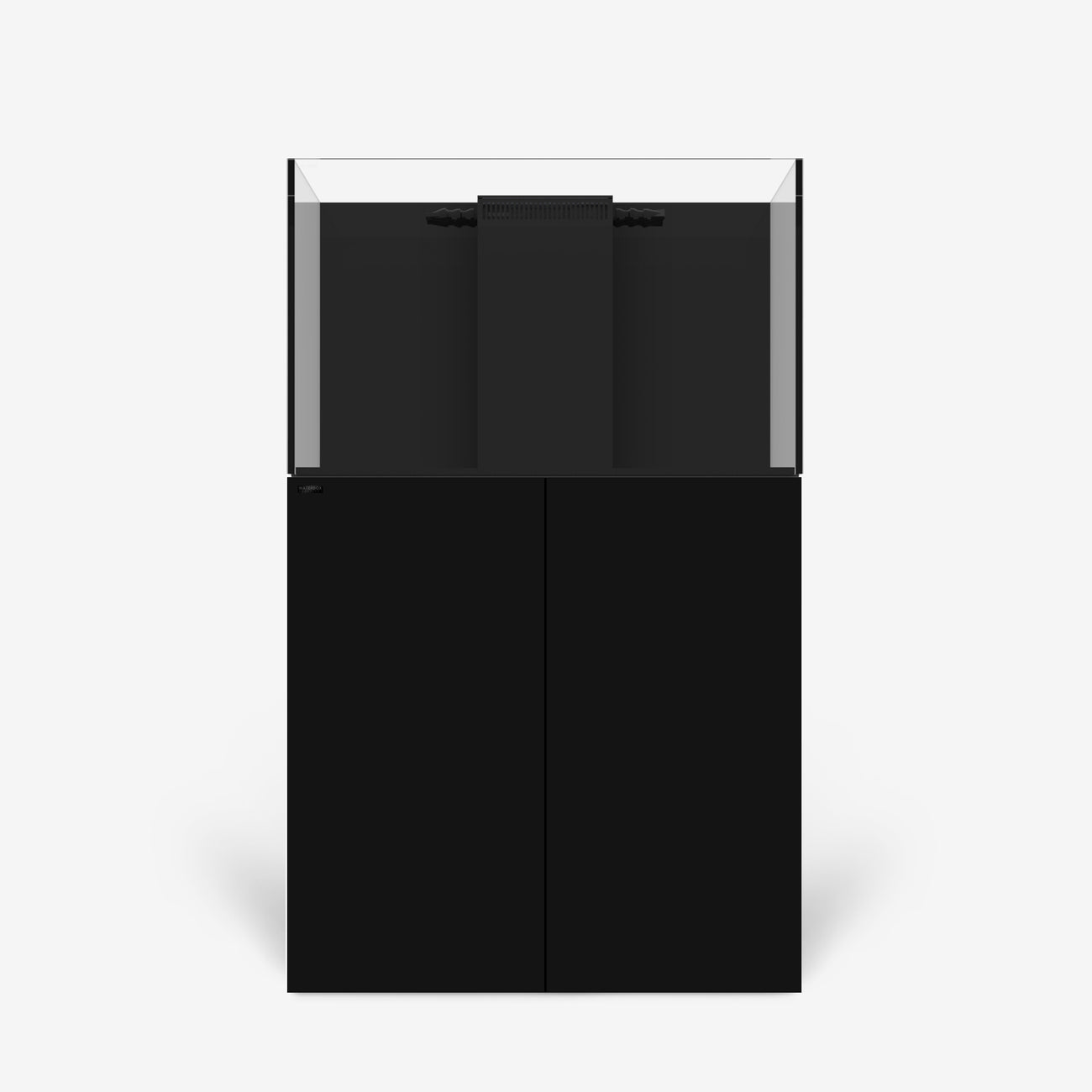

MARINE X 90.3
• Height with Cabinet: 1450mm / 57.1"
• Display Volume: 224 L/59.3 gals
• Total Volume: 322 L/85.0 gals
• Glass Thickness: 12mm
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
The Display
A Flawless Viewing Experience
Rimless
Rimless aquariums provide a modern look with an unobstructed viewing experience.
Ultra-Clear Glass
Offers 91% light transmittance and complete visual clarity up to 19mm (3/4”).
High Strength Black Silicone
Creates clean lines and provides your aquarium with the longevity it needs.
Central Overflow
Dual returns and a removable weir comb allow for easy maintenance and just the right amount of flow.
The Plumbing
A Safe & Silent Operation
Safety Drain
Prevents overflowing of the aquarium.
Main Drain
Directs water to the sump filtration system.
Return Line
Equipped with dual adjustable nozzles for precise water flow.
The Plumbing
Easy To Assemble
Downflow Drain System
Provides the ability to push higher flow rates through the drain.
Quick Connect Fittings
Assembly is quick and easy with no gluing required.
Precision Overflow Valve
Allows for precise adjustments through main drain ensuring quiet operation.

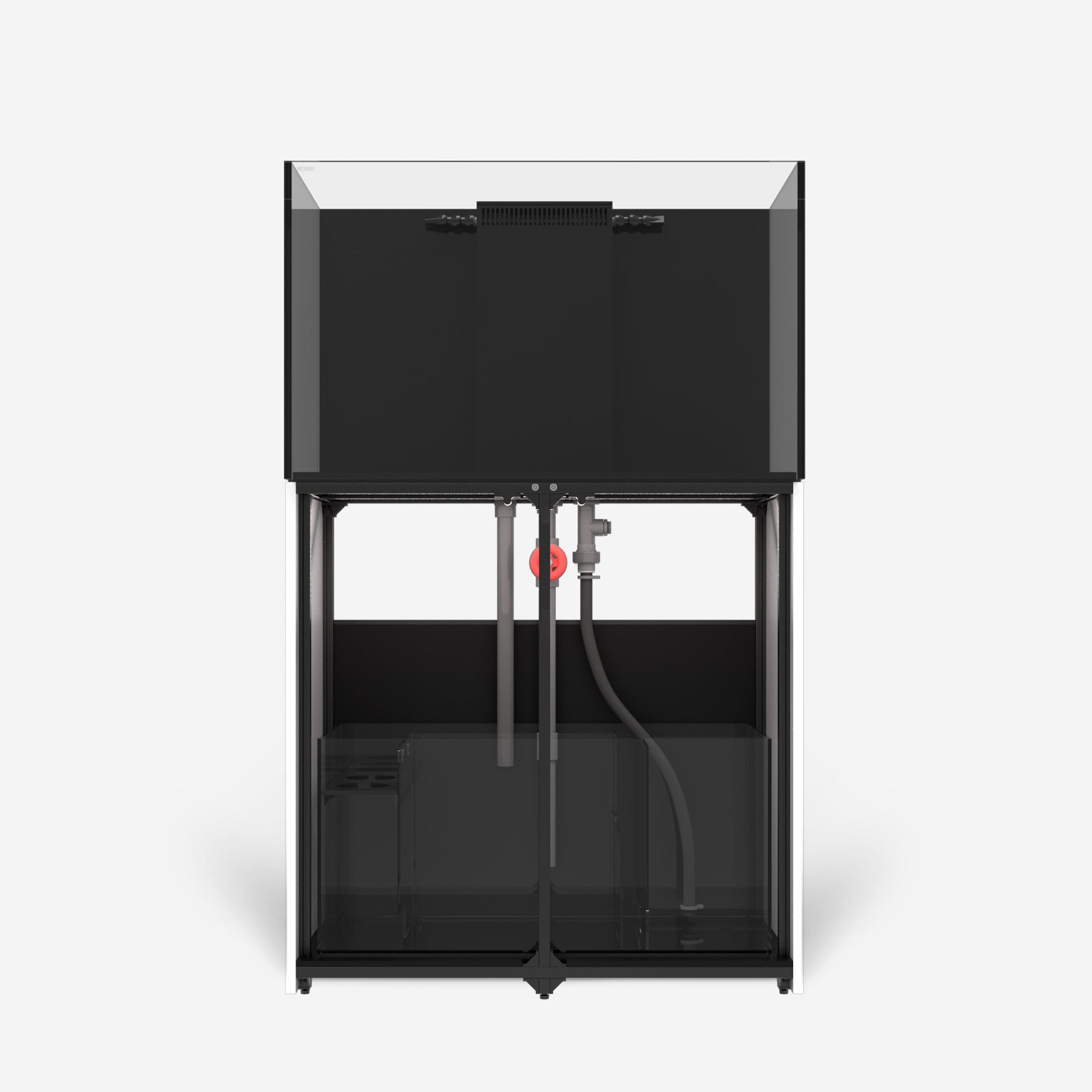

The Sump
Designed for simplicity and functionality
Filter Sock or Roller Filtration
Dual 4-inch filter socks which can easily adopt the most popular filter rollers.
Skimmer & Media Reactor Chamber
Ample space for the industry's leading skimmers and reactors.
RO Reservoir
Integrated reservoir for ease of maintenance using an electronic top-off system.
Return Pump Chamber
Adequate space for most common aquarium return pumps.
The Cabinetry
Strength and Durability
Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Aluminum Framed
Constructed with 20 mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Laminated Finish
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Adjustable Leveling Feet
An easy and effective way to ensure your aquarium is level, front to back and side-to-side.
Accessibility
The open back design allows for optimal ventilation and easy cord routing.
MARINE X
Technical Specifications
| Product Model | MARINE X 60.2 Gen2 | MARINE X 90.3 Gen2 | MARINE X 110.4 Gen2 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,400mm/55.6" | 1,450mm/57.1" | 1,450mm/57.1" |
| Total Volume with RO | 211 L/55.6 gals | 342 L/90.2 gals | 418 L/110.5 gals | |
| Display Tank |
Tank Dimensions | 600 x 500 x 500mm | 900 x 500 x 550mm | 1,200 x 500 x 550mm |
| 23.6" × 19.7" × 19.7" | 35.4" × 19.7" × 21.7" | 47.2" × 19.7" × 21.7" | ||
| Glass Thickness | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 510 x 410 x 380mm | 800 x 410 x 380mm | |
| 20.1" × 16.1" × 15" | 31.5" × 16.1 × 15" | |||
| Sump Volume | 74 L/19.6 gals | 117 L/31 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Skimmer Chamber (Int. Dimensions) |
308 x 258mm | 388 x 343mm | ||
| 12.1" × 10.2" | 15.3" × 13.5" | |||
| Pump Chamber (Int. Dimensions) |
140 x 210mm | 210 x 150mm | ||
| 5.5" × 8.3" | 8.3" × 5.9" | |||
| RO Reservoir (Int. Dimensions) |
140 x 183 x 359mm | 210 x 243 x 359mm | ||
| 5.5" × 7.2" × 14.1" | 8.3" × 9.6" × 14.1" | |||
| RO Volume | 9.2 L/2.4 gals | 18.3 L/4.8 gals | ||
| Plumbing | Main Drain | DN20 (25mm/1") | DN25 (32mm/1-1/4") | |
| Emergency Overflow | DN20 (25mm/1") | DN25 (32mm/1-1/4") | ||
| Pump Return | DN20 (25mm/1") | DN20 (25mm/1") | ||
| Nozzle(s) | 2 x DN15 (20mm/3/4") | |||
| Pre-assembled Piping with Emergency Overflow | ||||
| High Precision Flow Valve | ||||
| Dual Return Directional Nozzles | 2 x DN15 (20mm/3/4") | |||
| Filtration | 225 Micron Fileter Socks | 1 x 105mm/4" MESH | 2 x 105mm/4" MESH | |
| Filter Sock Silencers | 1 x 105mm/4" | 2 x 105mm/4" | ||
| Noise-reducing Overflow Lid | x 1 | x 2 | ||
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Sump Compartment (Int. Dimensions) |
524 x 468 x 813mm | 824 x 448 x 813mm | 1,124 x 440 x 813mm | |
| 20.6" × 18.4" × 32" | 32.4" × 17.6" × 32" | 44.3" × 16.5" × 32" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm PVC Laminated Wood Particle Board | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||

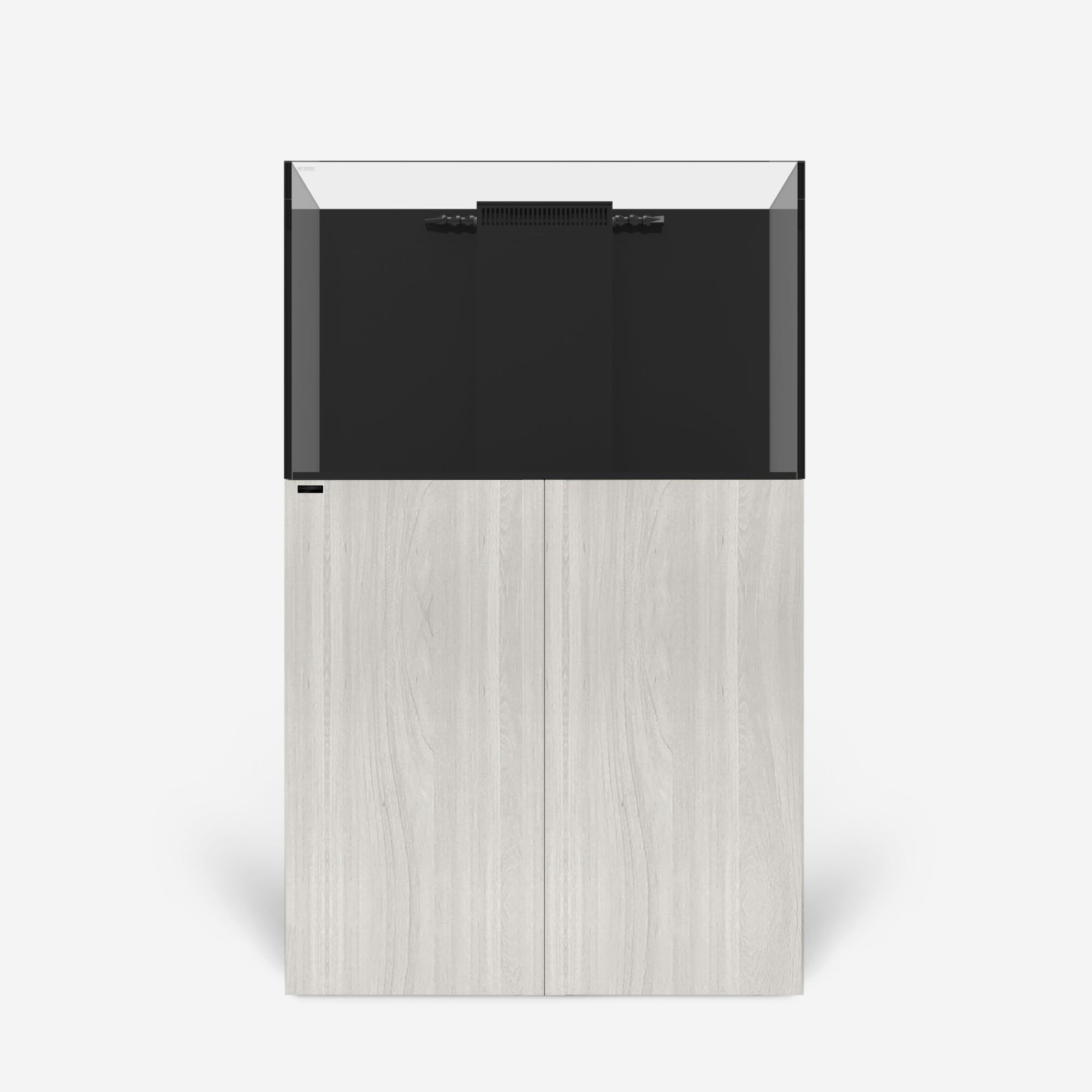

| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
| SUS304 Hinges | ||||
| Leveling Feet | ||||
| Optional Accessories |
Manifold Kit (Optional) | Manifold 15 (Single outlet) |
Manifold 15 (Single outlet) Manifold 15D (Double outlet) |
|
| Mesh Aquarium Lid (Optional) | MT MX 60.2 | MT MX 90.3 | MT MX 110.4 | |
