Waterbox Aquariums

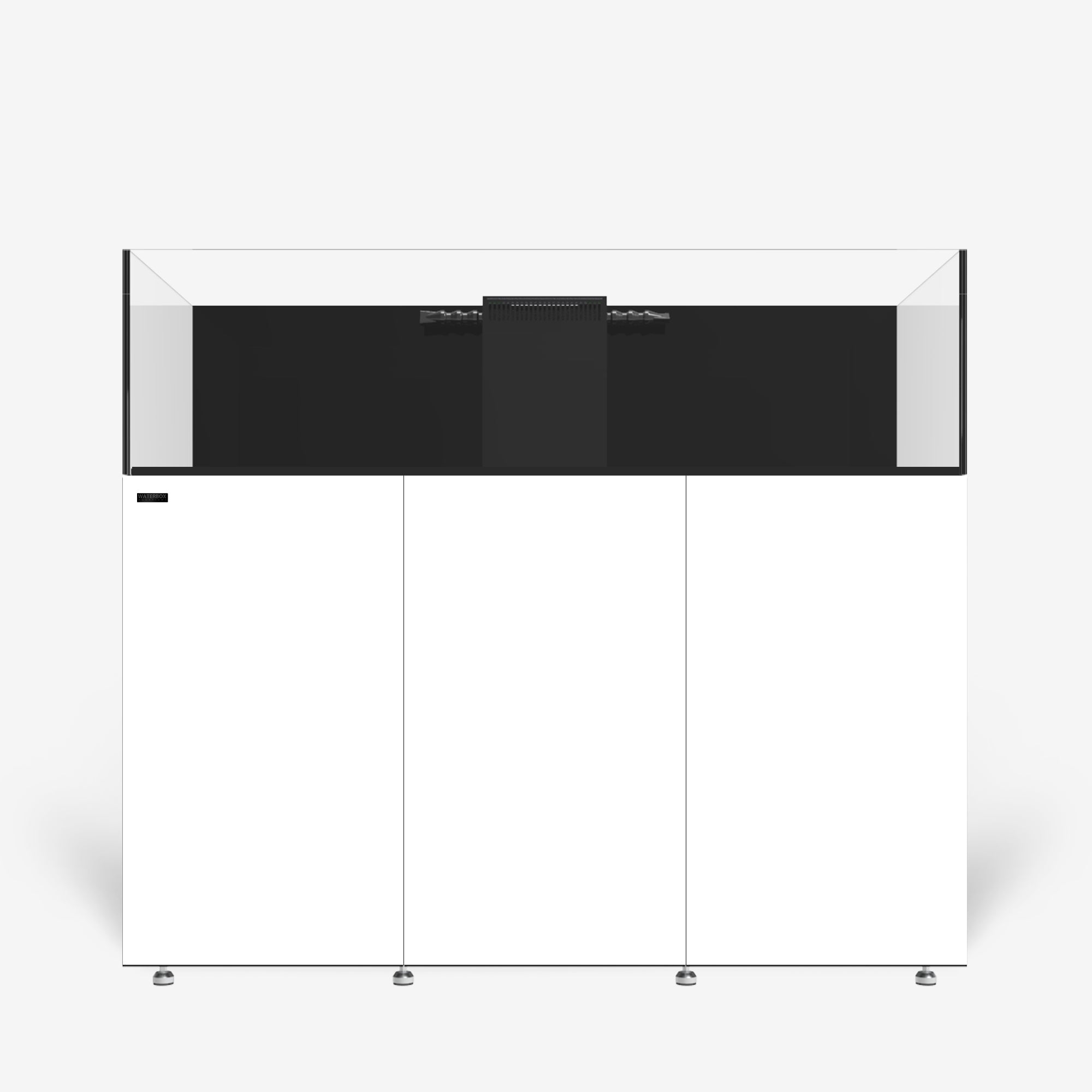

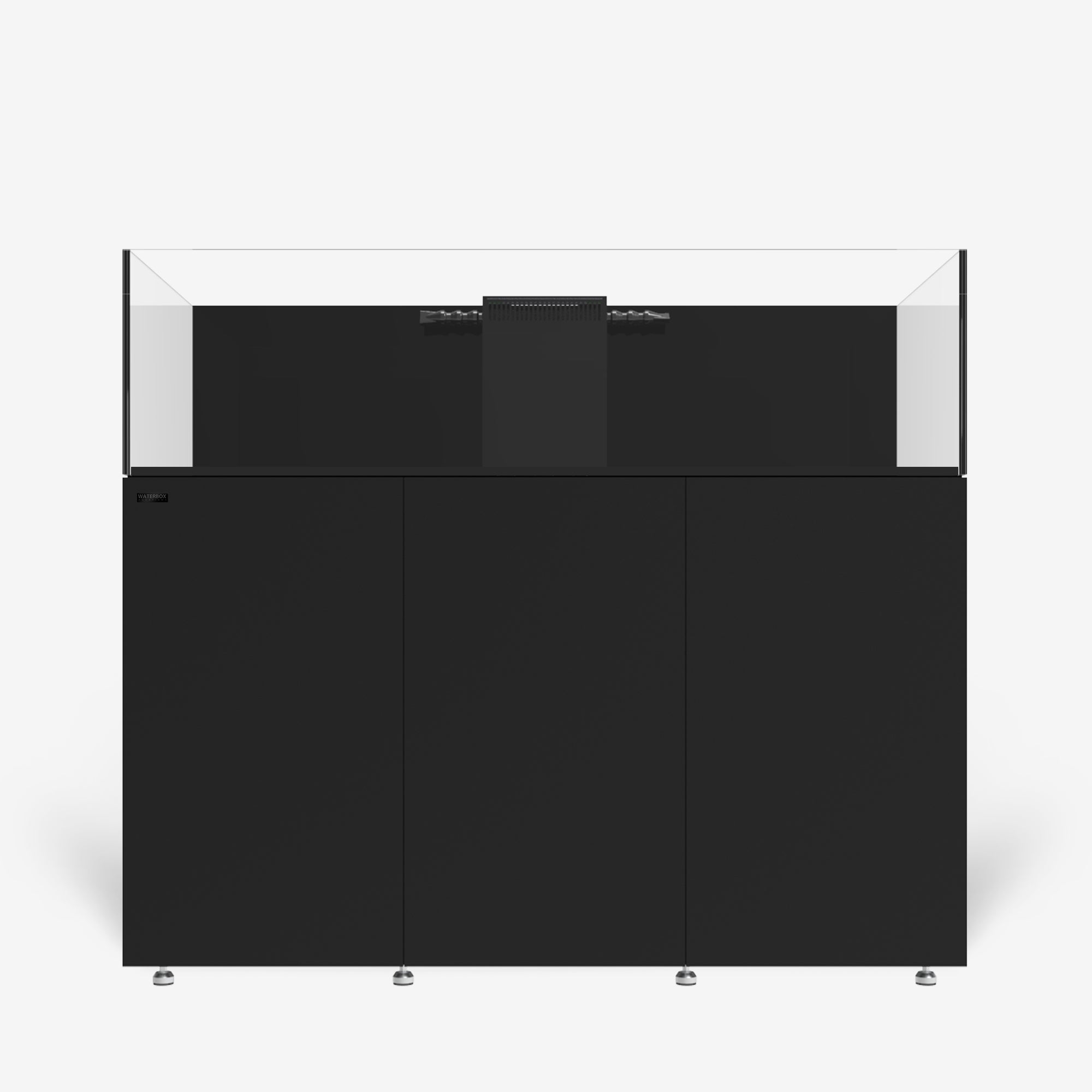

INFINIA Frag 155.5
• Dimensions (LxWxH): 1,536 x 643 x 410mm (60.5" x 25.3" x 16.1")
• Height with Cabinet: 1,337 mm / 52.6"
• Display Volume: 372 L / 98.4 gal
• Total Volume: 603 L / 159.2 gals
• Glass Thickness: 12 mm (1/2")
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
• Height with Cabinet: 1,337 mm / 52.6"
• Display Volume: 372 L / 98.4 gal
• Total Volume: 603 L / 159.2 gals
• Glass Thickness: 12 mm (1/2")
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
Color:White
The Display
Reach New Heights
Waterbox Aquariums® takes pride in hand-crafting stunning glass display aquariums that are renowned for superior cleanliness and quality.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

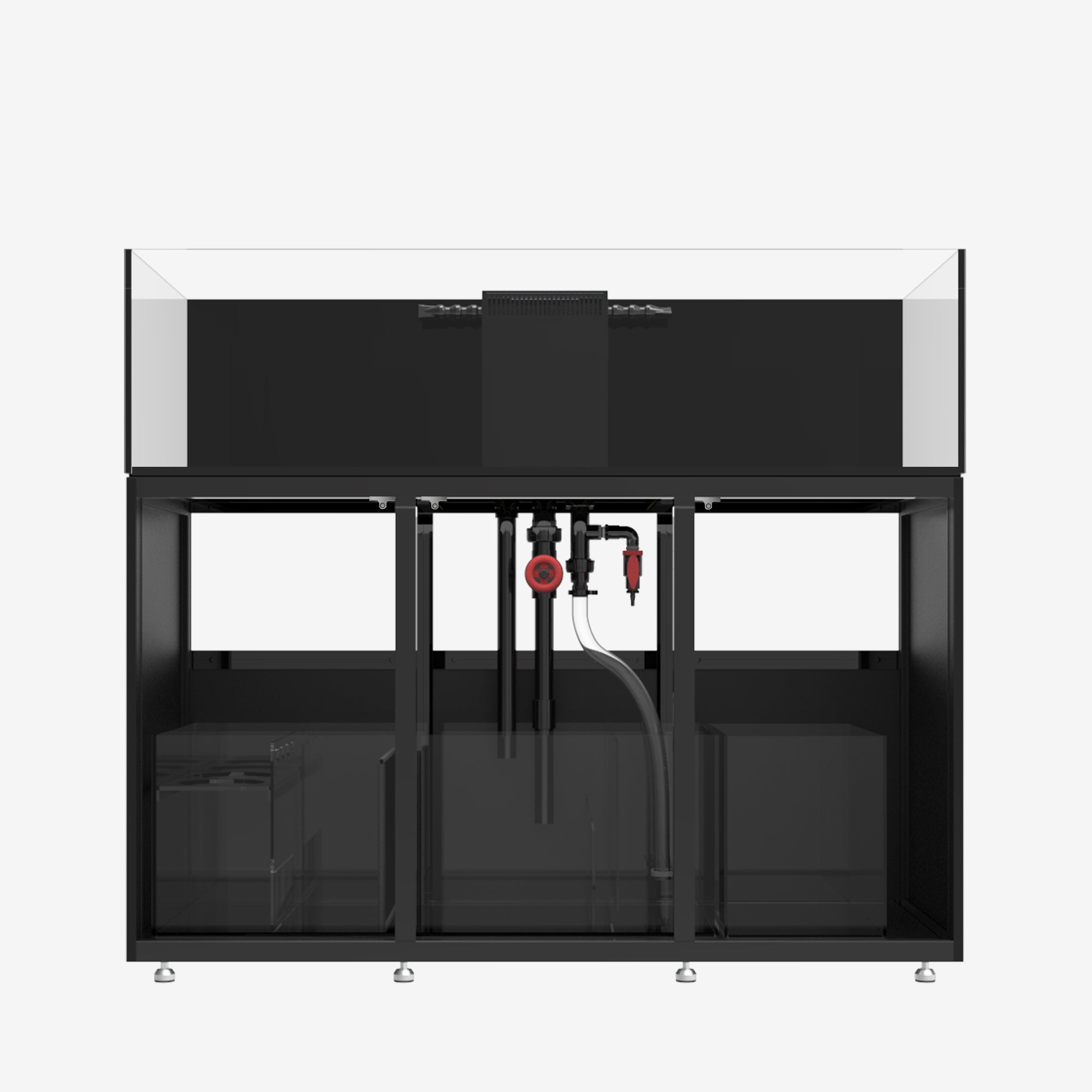

The Plumbing
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assemly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
Check valve only on INFINIA REEF models.
The Sump
Did you say filter roller?
The INFINIA® sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
Sump Diagrams
The Cabinetry
Strength and Durability
Unveiling our new MarineShield® cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
INFINIA
Technical Specifications
INFINIA FRAG
| Product Model | INFINIA FRAG 125.4 |
INFINIA FRAG 155.5 |
INFINIA FRAG 175.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,337mm/52.6" | 1,337mm/52.6" | 1,337mm/52.6" |
| Total Volume with ATO | 473 L/125 gals | 603 L/159.2 gals | 690 L/182.2 gals | |
| Estimated Weight (Dry) | 130kg (286 lbs) | 194kg (427 lbs) | 208kg (458 lbs) | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 410mm | 1,536 x 643 x 410mm | 1,836 x 643 x 410mm |
| 48.2" × 25.3" × 16.1" | 60.5" × 25.3" × 16.1" | 72.3" × 25.3" × 16.1" | ||
| Glass Thickness | 12mm (1/2") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 295 L/78 gals | 372 L/98.4 gals | 446 L/117.9 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 864 x 475 x 380mm | 1,067 x 475 x 380mm | 1,143 x 475 x 380mm |
| 34" × 18.7" × 15" | 42" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 145 L/38.3 gals | 179 L/47.4 gals | 192 L/50.8 gals | |
| Glass Thickness | 8mm (5/16") | |||
| Refugium Chamer (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1" × 15.8" | 9.8" × 15.8" | 11.8" × 15.8" | ||
| Refugium Chamer (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5" × 15.8" | 7.9" × 15.8" | 9.1" × 15.8" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
442 x 400mm | 600 x 400mm | 676 x 400mm | |
| 17.4" × 15.8" | 23.6" × 15.8" | 26.6" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
297 x 400mm | 395 x 400mm | 441 x 400mm | |
| 11.7" × 15.8" | 15.6" × 15.8" | 17.4" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
257 x 400mm | 345 x 400mm | 371 x 400mm | |
| 10.1" × 15.8" | 13.6" × 15.8" | 14.6" × 15.8" | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 180 x 400mm | 180 x 400mm | |
| 5.3" × 15.8" | 7.1" × 15.8" | 7.1" × 15.8" | ||
| Filter Sock Chamber Dimensions |
215 x 382mm | 215 x 382mm | 215 x 382mm | |
| 8.5" x 15" | 8.5" x 15" | 8.5" x 15" | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8" × 18.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN32 (40mm/1-1/2") | ||
| Emergency Overflow | DN32 (40mm/1-1/2") | |||
| Pump Return | DN25 (32mm/1-1/4") | |||
| Nozzle(s) | 2 x DN20 (25mm/1") | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7" MESH | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2" × 25.3" × 36.5" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,093 x 572 x 848mm | 1,406 x 541 x 848mm | 1,706 x 541 x 848mm | |
| 43" × 22.5" × 33.4" | 55.4" × 21.3" × 33.4" | 67.2" × 21.3" × 33.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | 18mm Plywood, Water-resistant PU coated | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black | |||
* All volumes are calculated from nett tank dimension less the glass thickness.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
INFINIA REEF
| Product Model | INFINIA REEF 150.4 |
INFINIA REEF 190.5 |
INFINIA REEF 230.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,477mm/58.2" | 1,502mm/59.1" | 1,527mm/60.1" |
| Total Volume with ATO | 577 L/152.5 gals | 747 L/197.4 gals | 875 L/231.2 gals | |
| Estimated Weight (Dry) | 189kg (416 lbs) | 280kg (617 lbs) | 363kg (800 lbs) | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 550mm | 1,536 x 643 x 575mm | 1,836 x 643 x 600mm |
| 48.2" × 25.3" × 21.7" | 60.5" × 25.3" × 22.6" | 72.3" × 25.3" × 23.6" | ||
| Glass Thickness | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Aquarium Volume | 399 L/105.5 gals | 517 L/136.6 gals | 632 L/167 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 864 x 475 x 380mm | 1,067 x 475 x 380mm | 1,143 x 475 x 380mm |
| 34" × 18.7" × 15" | 42" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 145 L/38.3 gals | 179 L/47.4 gals | 192 L/50.8 gals | |
| Glass Thickness | 8mm (5/16") | |||
| Refugium Chamer (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1" × 15.8" | 9.8" × 15.8" | 11.8" × 15.8" | ||
| Refugium Chamer (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5" × 15.8" | 7.9" × 15.8" | 9.1" × 15.8" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
442 x 400mm | 600 x 400mm | 676 x 400mm | |
| 17.4" × 15.8" | 23.6" × 15.8" | 26.6" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
297 x 400mm | 395 x 400mm | 441 x 400mm | |
| 11.7" × 15.8" | 15.6" × 15.8" | 17.4" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
257 x 400mm | 345 x 400mm | 371 x 400mm | |
| 10.1" × 15.8" | 13.6" × 15.8" | 14.6" × 15.8" | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 180 x 400mm | 180 x 400mm | |
| 5.3" × 15.8" | 7.1" × 15.8" | 7.1" × 15.8" | ||
| Filter Sock Chamber Dimensions |
215 x 382mm | 215 x 382mm | 215 x 382mm | |
| 8.5" x 15" | 8.5" x 15" | 8.5" x 15" | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8" × 18.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN32 (40mm/1-1/2") | ||
| Emergency Overflow | DN32 (40mm/1-1/2") | |||
| Pump Return | DN25 (32mm/1-1/4") | |||
| Nozzle(s) | 2 x DN20 (25mm/1") | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7" MESH | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2" × 25.3" × 36.5" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,093 x 572 x 848mm | 1,406 x 541 x 848mm | 1,706 x 541 x 848mm | |
| 43" × 22.5" × 33.4" | 55.4" × 21.3" × 33.4" | 67.2" × 21.3" × 33.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | 18mm Plywood, Water-resistant PU coated | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black | |||
* All volumes are calculated from nett tank dimension less the glass thickness.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
