Waterbox Aquariums

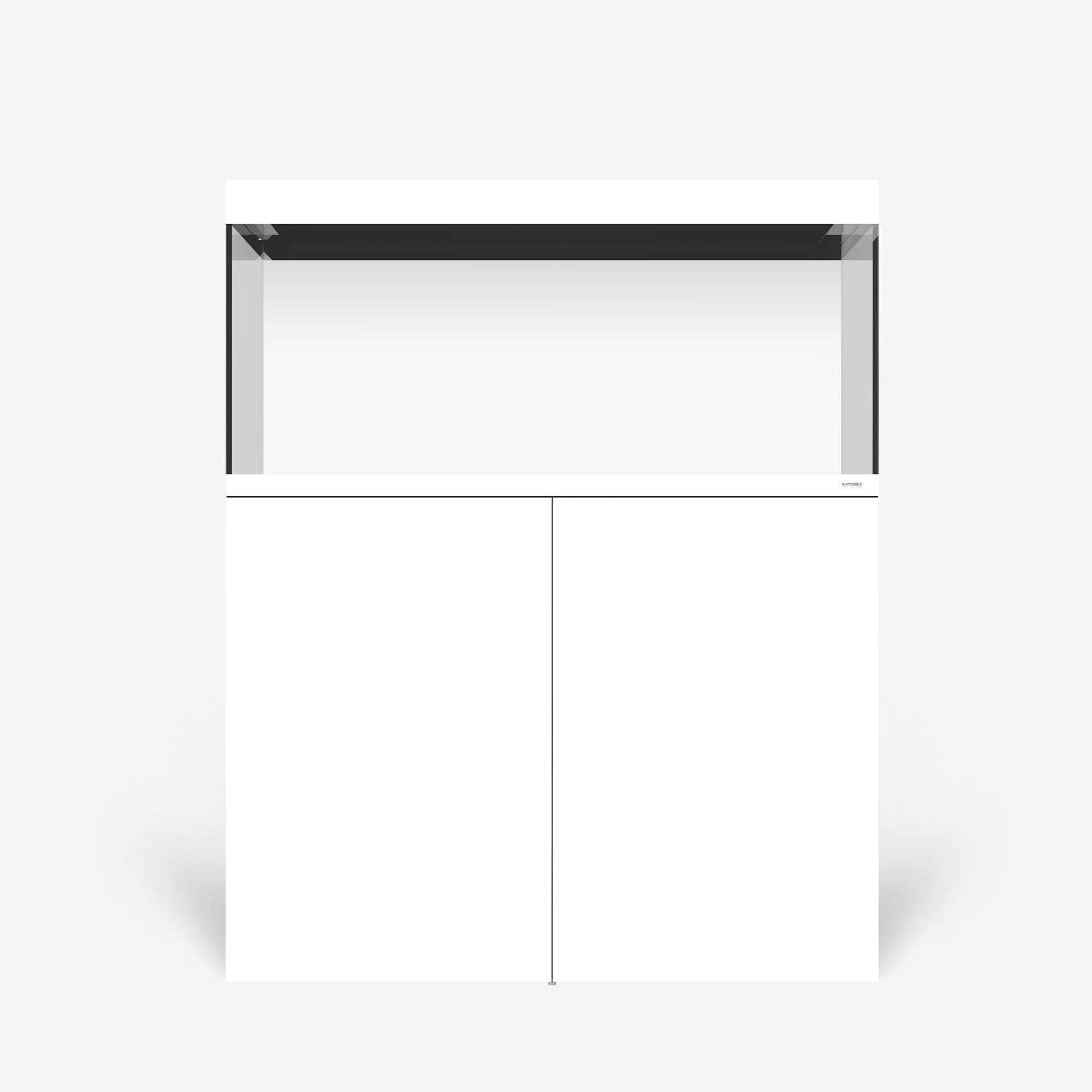

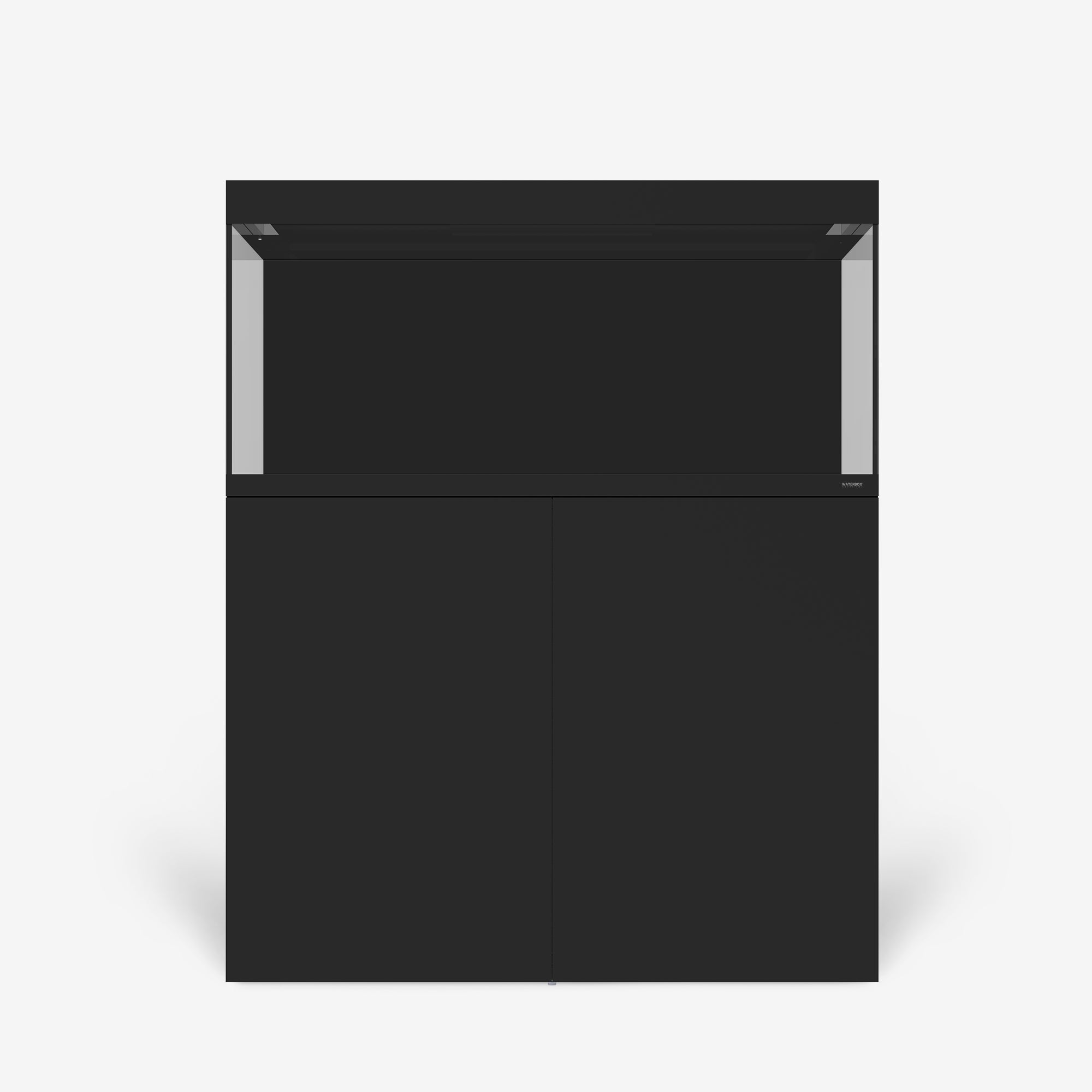

EDEN X 80 Peninsula
• Dimensions (LxWxH): 1200 x 500 x 580mm (47.2" x 19.7" x 22.8")
• Height with Cabinet: 1480mm / 58.3"
• Display Volume: 302 L / 80 gals
• Glass Thickness: 10mm
• Includes: Aquarium & Cabinet
View Full Specifications
• Height with Cabinet: 1480mm / 58.3"
• Display Volume: 302 L / 80 gals
• Glass Thickness: 10mm
• Includes: Aquarium & Cabinet
View Full Specifications
Bundle:EDEN X 80 PENINSULA
Color:White
The Display
Bigger Amazingly Clear Display Panels
Crafted with ultra-clear glass, you'll enjoy an unmatched view of your mesmerizing aquatic world from every perspective.
Ultra-Clear diamond beveled glass offers visual clarity.
Our integrated glass lid system opens from both sides and is completely optional. It also helps to hide equipment and keeps your fish safe..
Designed to work with the AI Blade, our glass lighting mounts conceal your lighting systems which maintains the contemporary look of the EDEN.
Each system includes one or two rear cut outs so you can easily integrate cansister filters, powerheads and heaters.
Accessibility and Durability

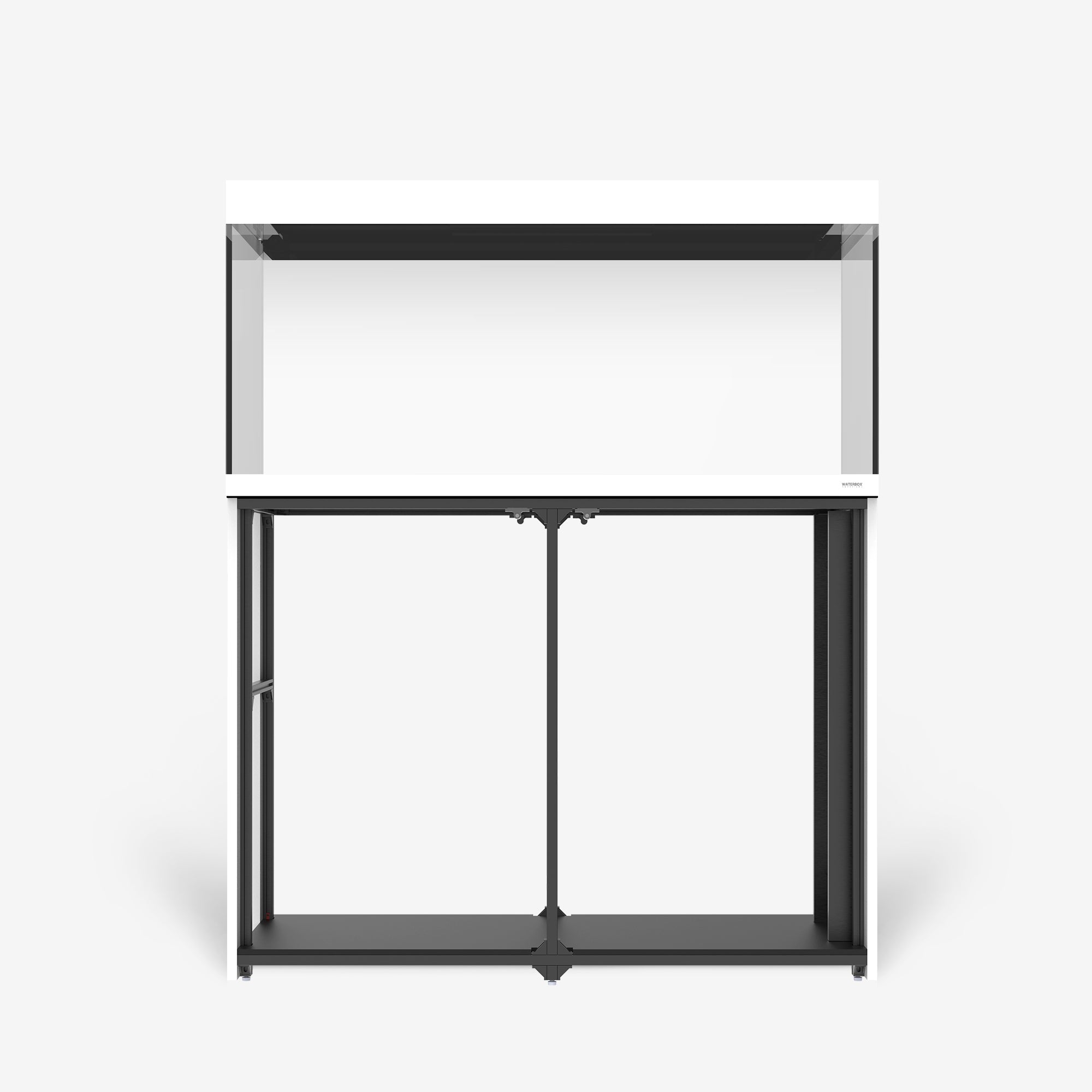

Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Constructed with 20 mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Ajustable leveling feet provide an easy and effective way to ensure your aquarium is level.
The Peninsula model opens on both sides for maximum accessibility.
MODELS
EDEN X
Technical Specifications
| Product Model | EDEN X 60 | EDEN X 80 | EDEN X 80 Peninsula | |
|---|---|---|---|---|
| System | System Length | 900mm/35.4" | 1200mm/47.2" | 1200mm/47.2" |
| System Width | 500mm/19.7" | 500mm/19.7" | 500mm/19.7" | |
| System Height (with Cabinet) | 1480mm/58.3" | 1480mm/58.3" | 1480mm/58.3" | |
| Aquarium | Dimensions | 900 x 500 x 580mm | 1200 x 500 x 580mm | 1200 x 500 x 580mm |
| 35.4" × 19.7" × 22.8" | 47.2" × 19.7" × 22.8" | 47.2" × 19.7" × 22.8" | ||
| Aquarium Volume | 225 L/59 gals | 302 L/80 gals | 302 L/80 gals | |
| Glass Thickness | 10mm (2/5") | 10mm (2/5") | 10mm (2/5") | |
| Glass Material | Ultra-clear Low Iron glass | |||
| Transmittance | 91% | |||
| Joints | Regular 90° | |||
| Tank Lid | 5mm Black Glass | |||
| Max Water Level | 516mm (20.3") | 514mm (20.2") | 514mm (20.2") | |
| Max LED Lighting Length | 880mm (34.7") | 1180mm (46.5") | 1180mm (46.5") | |
| Min LED Lighting Length | 790mm (31.1") | 1090mm (42.9") | 1090mm (42.9") | |
| Max LED Lighting Thickness | 27mm (1.1") | 27mm (1.1") | 27mm (1.1") | |
| Max Canister Filter Piping | DN20 (25mm/1") | DN20 (25mm/1") | DN20 (25mm/1") | |
| Vinyl on Rear Glass | Black for BLK, White for WHT and ASP | |||
| Silicone Color | Black for BLK, Clear for WHT and ASP | |||
| Top Banding Width | 80mm (3.2") | |||
| Bottom Banding Width | 40mm (1.5") | |||
| EVA Mat (Black) | x 1 | |||
| Cabinet | Cabinet Model | ALU 3620 | ALU 4820 | ALP 4820 |
| Cabient Dimensions | 900 x 500 x 900mm | 1,200 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Cabinet Material | 18mm Particle Board, PVC Laminated | |||
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
