Waterbox Aquariums

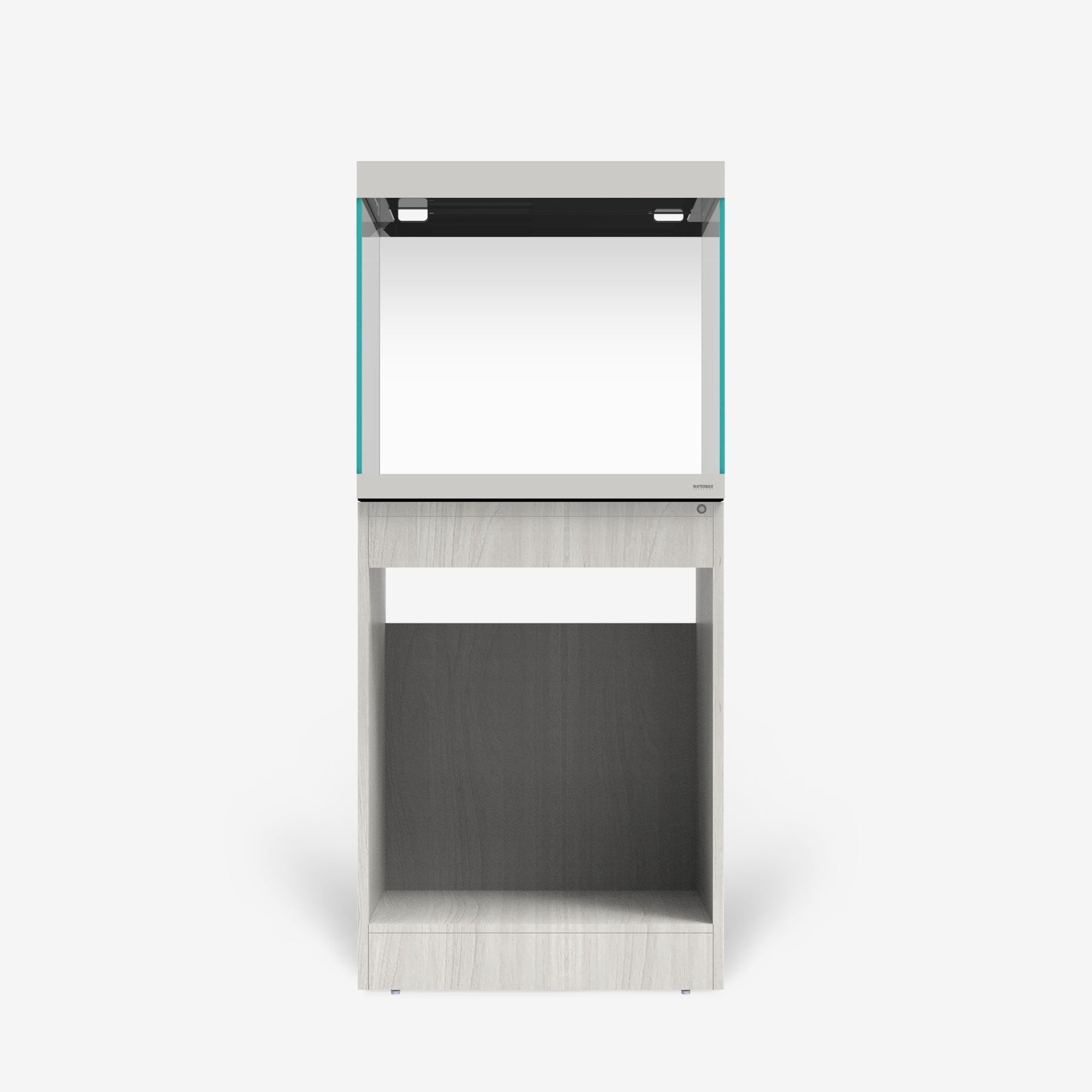

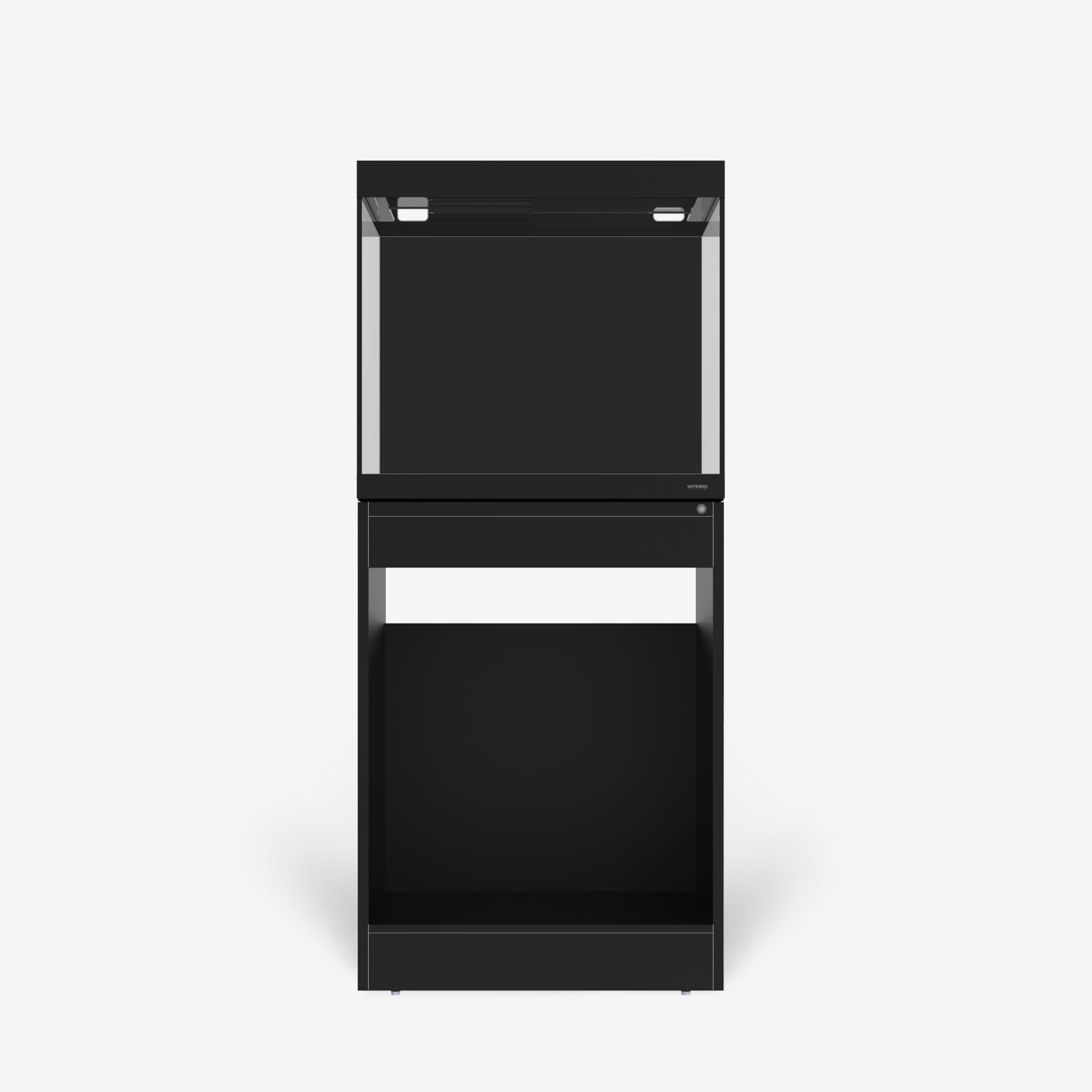

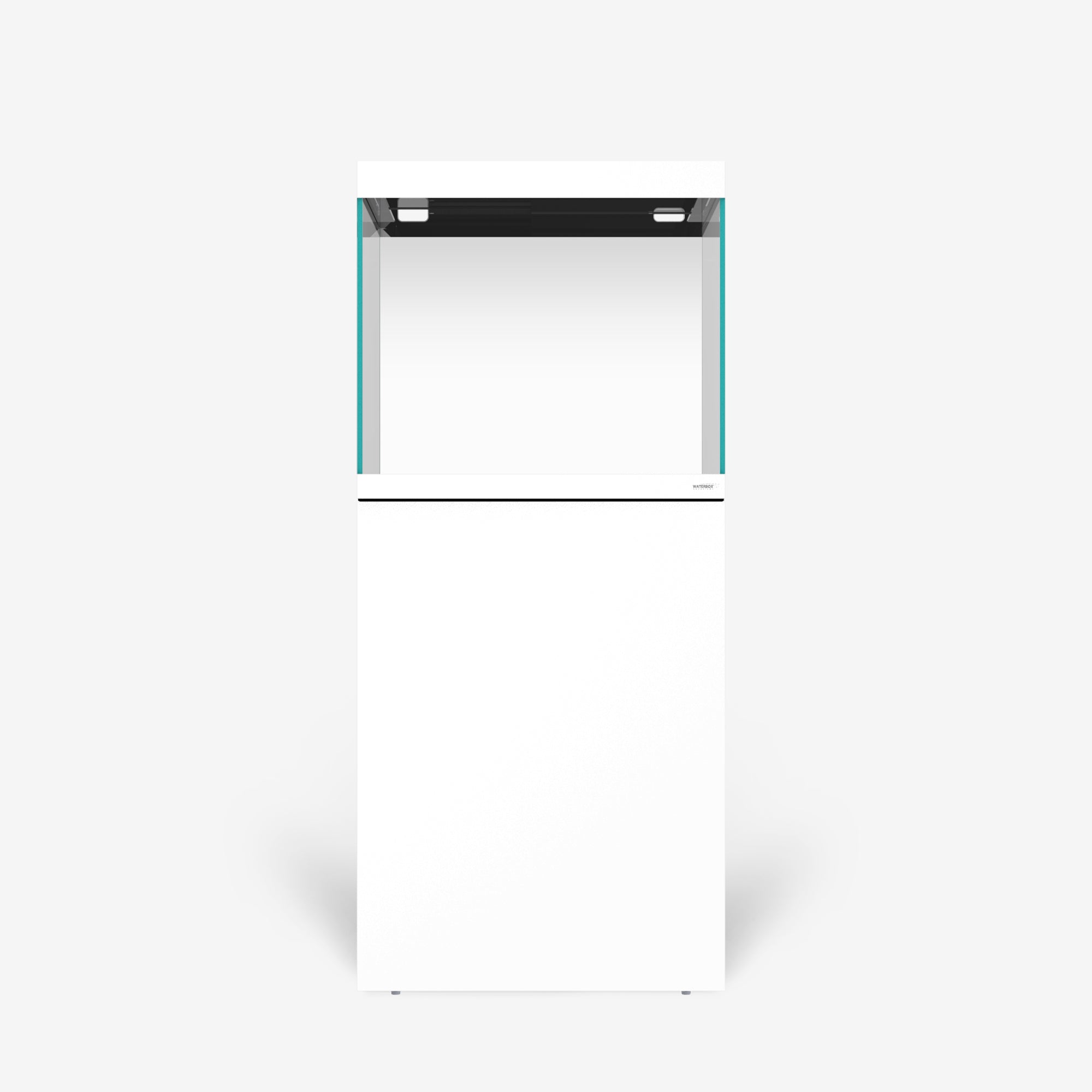

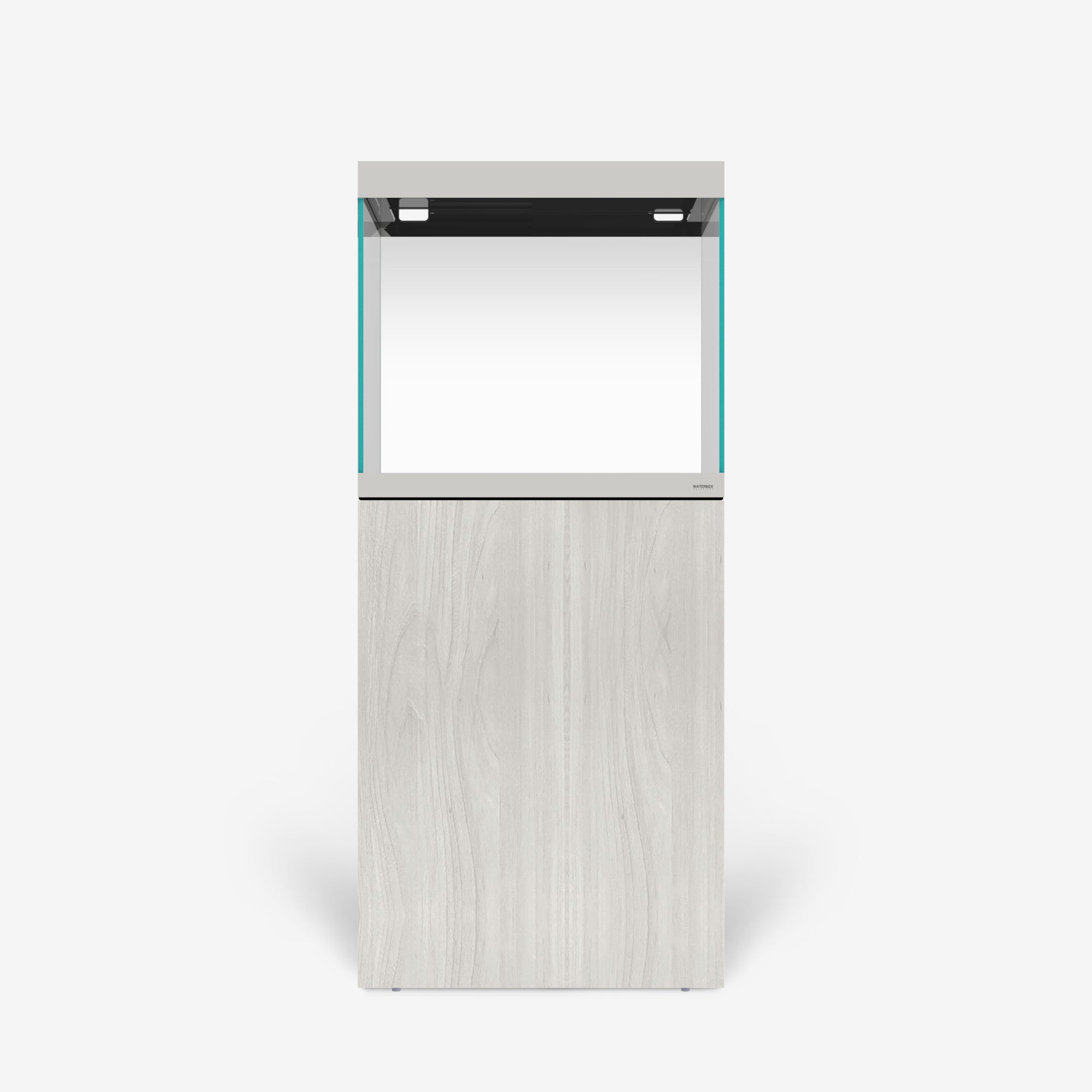

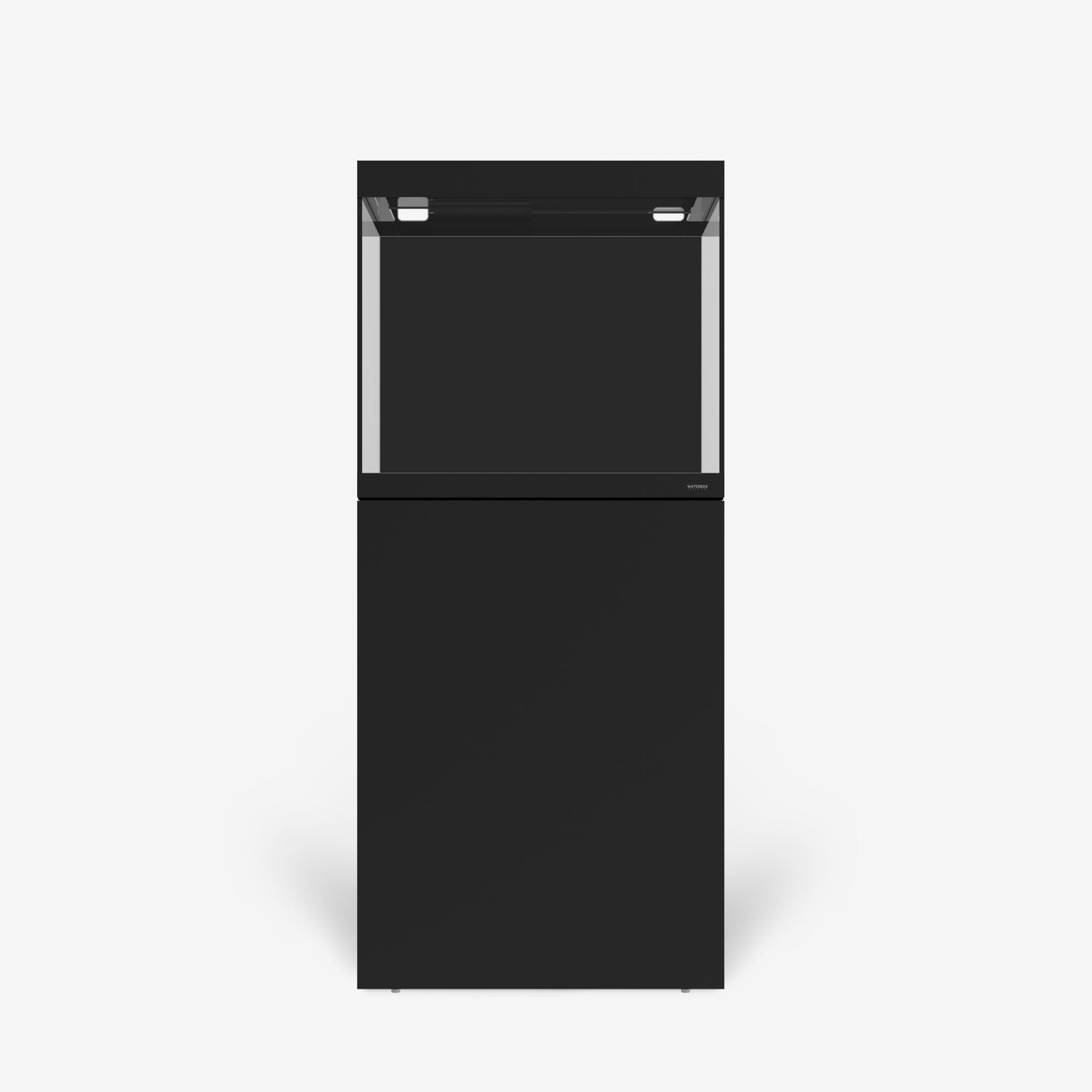

EDEN 30
• Dimensions (LxWxH): 600 x 400 x 550mm (23.6" × 15.7" × 21.7")
• Height with Cabinet: 1,360mm/53.5"
• Display Volume: 111 L/29.4 gals
• Glass Thickness: 8mm (5/16")
View Full Specifications
• Height with Cabinet: 1,360mm/53.5"
• Display Volume: 111 L/29.4 gals
• Glass Thickness: 8mm (5/16")
View Full Specifications
Bundle:EDEN 30
Color:White
The Display
Amazingly Clear Display Panels
The EDEN is manufactured to the same quality you would expect from our master technicians, the Waterbox Aquariums® quality stands out above the rest. Utilizing ultra-clear glass, each EDEN aquarium offers the most transparent viewing experience possible.
Ultra-Clear diamond beveled glass offers visual clarity.
Our integrated glass lid system opens from both sides and is completely optional. It also helps to hide equipment and keeps your fish safe..
Designed to work with the AI Blade, our glass lighting mounts conceal your lighting systems which maintains the contemporary look of the EDEN.
Each system includes one or two rear cut outs so you can easily integrate cansister filters, powerheads and heaters.
The Cabinetry
Contemporary Style Combined With Durability
Our Laminated Freshwater Aquarium Cabinets are thoughtfully designed to pair with your aquarium system. Optionally included with each EDEN system.
MODELS
EDEN
Technical Specifications
| Product Model | EDEN 20 | EDEN 30 | EDEN 40 | |
|---|---|---|---|---|
| System | System Length | 450mm/17.7" | 600mm/23.6" | 800mm/31.5" |
| System Width | 450mm/17.7" | 400mm/15.7" | 400mm/15.7" | |
| System Height (with Cabinet) | 1,260mm/49.6" | 1,360mm/53.5" | 1,360mm/53.5" | |
| Aquarium | Dimensions | 450 x 450 x 450mm | 600 x 400 x 550mm | 800 x 400 x 550mm |
| 17.7" × 17.7" × 17.7" | 23.6" × 15.7" × 21.7" | 31.5" × 15.7" × 21.7" | ||
| Aquarium Volume | 77 L/20.2 gals | 111 L/29.4 gals | 150 L/39.5 gals | |
| Glass Thickness | 6mm (1/4") | 8mm (5/16") | 8mm (5/16") | |
| Glass Material | Ultra-clear Low Iron glass | |||
| Transmittance | 91% | |||
| Joints | Regular 90° | |||
| Tank Lid | 5mm Black Glass | |||
| Max Water Level | 404mm (15.9") | 504mm (19.8") | 504mm (19.8") | |
| Max LED Lighting Length | 438mm (17.2") | 584mm (23") | 784mm (30.9") | |
| Min LED Lighting Length | 388mm (15.2") | 534mm (21") | 734mm (28.9") | |
| Max LED Lighting Thickness | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Max Canister Filter Piping | DN15 (20mm/3/4") | DN15 (20mm/3/4") | DN20 (25mm/1") | |
| Vinyl on Rear Glass | Black for BLK, White for WHT and ASP | |||
| Silicone Color | Black for BLK, Clear for WHT and ASP | |||
| Top Banding Width | 60mm (2.4") | |||
| Bottom Banding Width | 40mm (1.5") | |||
| EVA Mat (Black) | x 1 | |||
| Cabinet | Cabinet Model | PB 1818 | PB 2416 | PB 3216 |
| Cabient Dimensions | 450 x 450 x 810mm | 600 x 400 x 810mm | 800 x 400 x 810mm | |
| 17.7"×17.7"×31.9" | 23.6"×15.7"×31.9" | 31.5"×15.7"×31.9" | ||
| Cabinet Material | 18mm Particle Board, PVC Laminated | |||
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
