Waterbox Aquariums

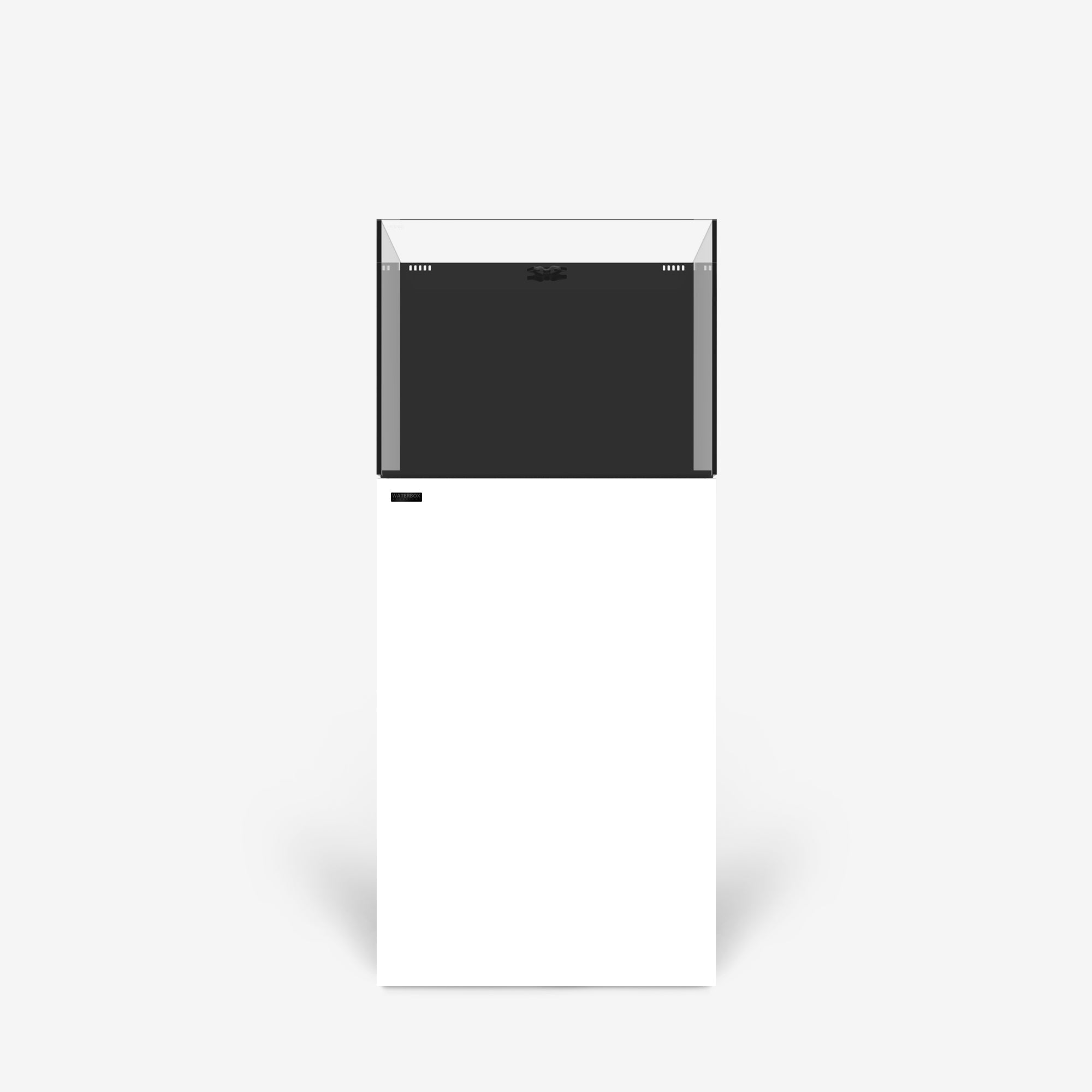

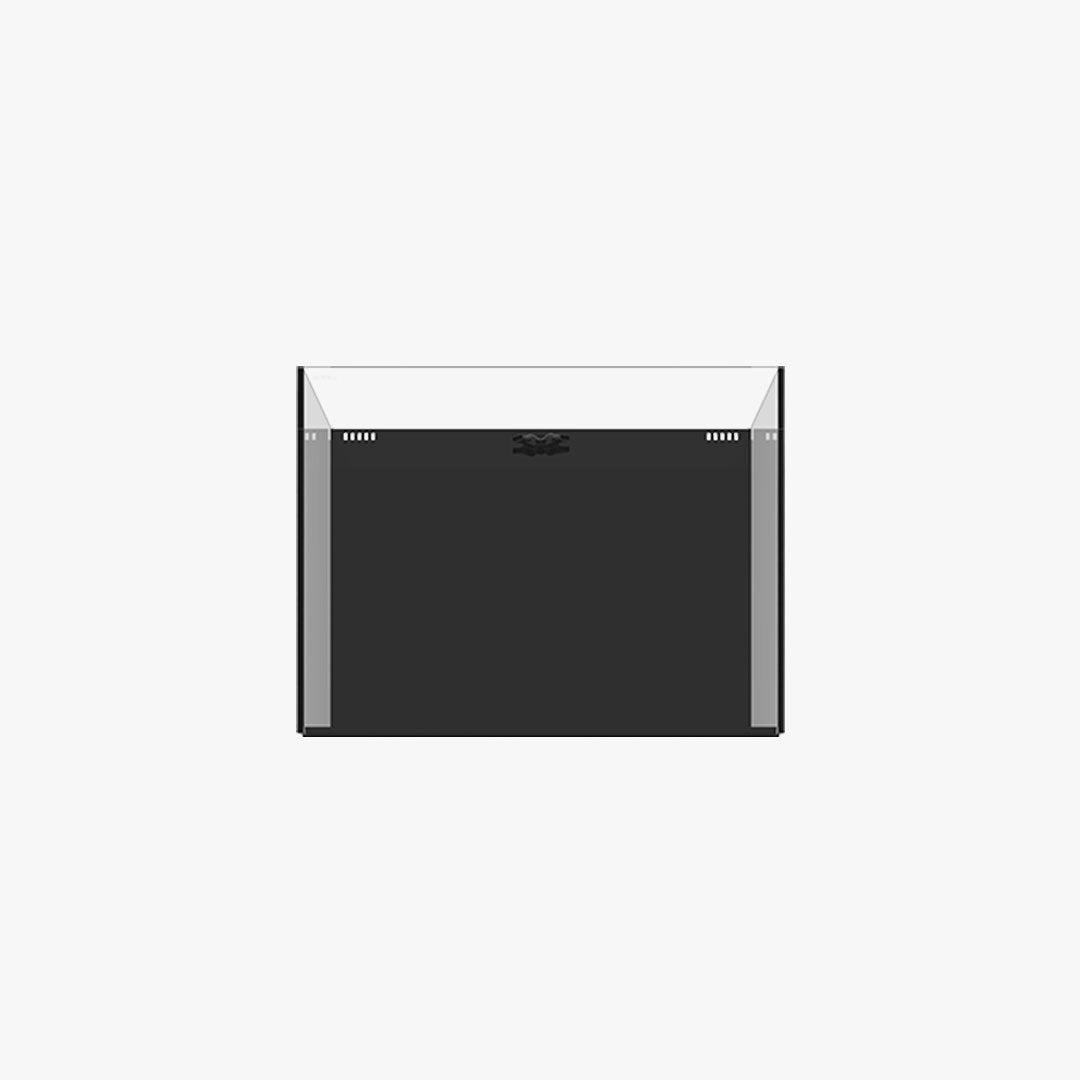

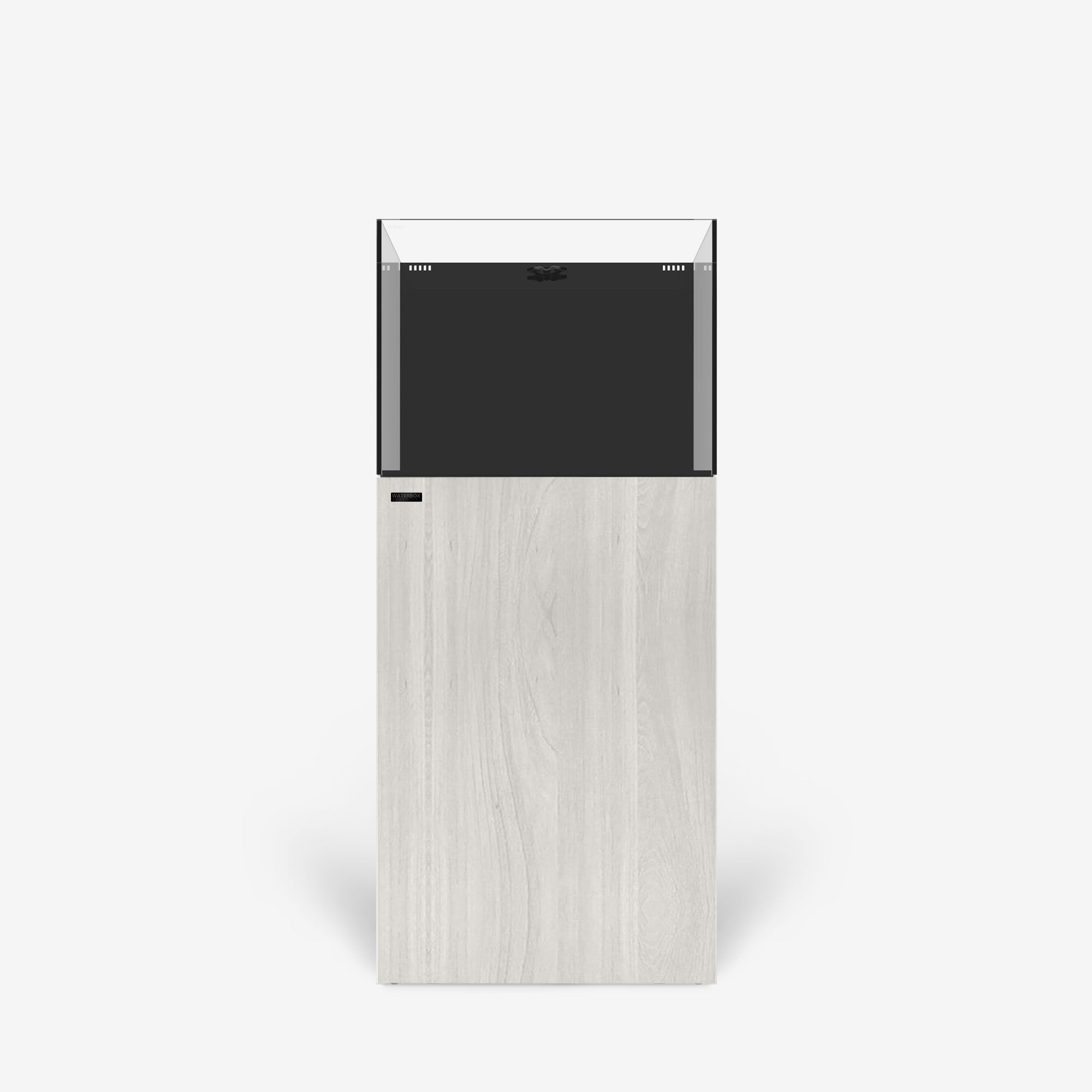

AIO 35.2
• Dimensions (LxWxH): 600 x 500 x 450mm (23.6" x 19.7" x 17.7")
• Height with Cabinet: 1350mm / 53.1"
• Display Volume: 125L / 33gal
• Glass Thickness: 8mm
• Includes: Aquarium Filter Sock, Carbon, Bio Balls (Pump sold separately, Cabinet Optional)
View Full Specifications
• Height with Cabinet: 1350mm / 53.1"
• Display Volume: 125L / 33gal
• Glass Thickness: 8mm
• Includes: Aquarium Filter Sock, Carbon, Bio Balls (Pump sold separately, Cabinet Optional)
View Full Specifications
Color:White
The Display & Filtration
Newbie or Pro
The AIO was designed so you can keep more in your aquarium with less. Available from 20 through 65 gallons, the AIO delivers an aquatic environment for novice and professional aquarium keepers.
Adjustable Nozzle return allow for precise water agitation.
Ideal for novice and professional aquarium keepers
The unique filtration and baffle system forces the water to travel through the filter socks and then flow into chambers adequately sized for multiple types of filtration media.
AIO 20 & 25 include a perfectly matched return pump for optimal water turnover.
Filtration media is included to keep your water clear and polished.
The Cabinetry
Strength & Stability
Waterbox furniture is designed to elevate your living spaces with our first in class cabinetry and finishes. Available in white, black, or aspen.
Engineered to stand the test of time.

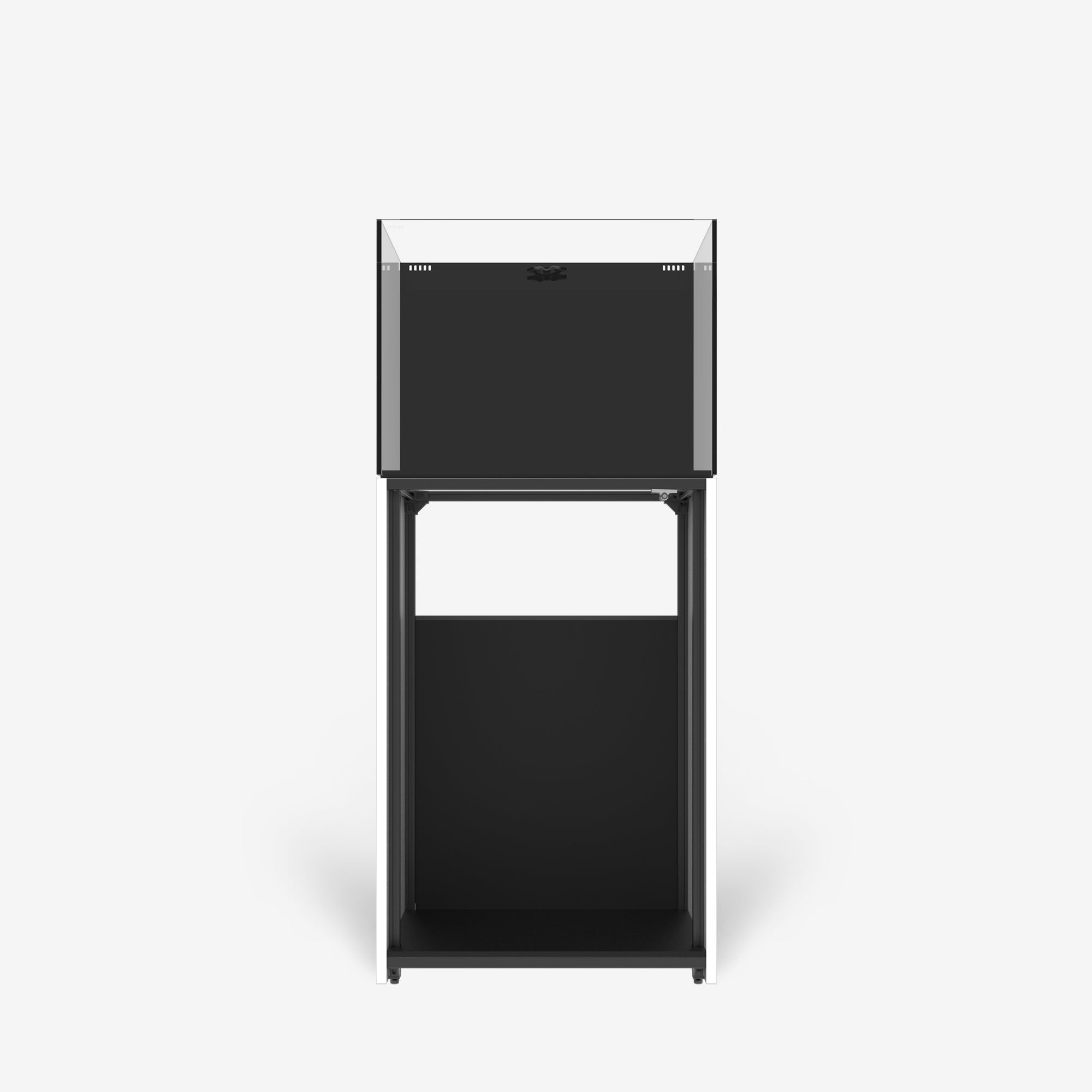

Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
Excluding AIO 20 Cube
Excluding AIO 20 Cube
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Adjustable Leveling Feet provide easy and effective way to ensure your aquarium is level, front to back and side-to-side.
Technical Specifications
| Product Model | AIO 10 CUBE | AIO 15 Peninsula | AIO 20 CUBE | AIO 25 Peninsula | |
|---|---|---|---|---|---|
| Aquarium | Dimensions (Length x Width x Height) |
350 x 361 x 350mm | 500 x 350 x 350mm | 450 x 450 x 400mm | 600 x 400 x 400mm |
| 13.8"×14.2"×13.8" | 19.7"×13.8"×13.8" | 17.7"×17.7"×15.7" | 23.6"×15.7"×15.7" | ||
| Glass Thickness | 5mm (3/16") | 5mm (3/16") | 6mm (1/4") | 6mm (1/4") | |
| Water Height | 335mm/13.2" | 335mm/13.2" | 385mm/15.2" | 385mm/15.2" | |
| Aquarium Volume | 41 L/10.9 gals | 57 L/15.2 gals | 76 L/20.0 gals | 90 L/23.7 gals | |
| Aquairum Weight | 11.5 kg / 25.4 lb | 14.0 kg / 30.9 lb | 19.5 kg / 43.0 lb | 21.5 kg / 47.4 lb | |
| Glass Material | Ultra-clear glass | ||||
| Transmittance | 91% | ||||
| Media/Skimmer Chamber | 125 x 80 x 350mm | 125 x 80 x 345mm | 200 x 80 x 400mm | 173 x 80 x 394mm | |
| 4.9"×3.1"×13.8" | 4.9"×3.1"×13.5" | 7.9"×3.1"×15.7" | 6.8"×3.1"×15.5" | ||
| Filter Sock Chamber | 80 x 80 x 350mm | 80 x 80 x 350mm | 80 x 80 x 400mm | 80 x 80 x 400mm | |
| 3.1"×3.1"×13.8" | 3.1"×3.1"×13.8" | 3.1"×3.1"×15.7" | 3.1"×3.1"×15.7" | ||
| Pump Chamber | 80 x 95 x 350mm | 80 x 95 x 350mm | 80 x 118 x 400mm | 80 x 118 x 400mm | |
| 3.1"×3.7"×13.8" | 3.1"×3.7"×13.8" | 3.1"×4.6"×15.7" | 3.1"×4.6"×15.7" | ||
| Directional Nozzle | 1 | 1 | 1 | 1 | |
| Return Hose | Φ16 | Φ16 | Φ16 | Φ16 | |
| EVA Mat | 1 | 1 | 1 | 1 | |
| Accessories | Pump Flow | 600L/h | 1000L/h | 1000L/h | 1000L/h |
| Directional Nozzle | ✓ | ✓ | ✓ | ✓ | |
| Return Hose | Φ16 | Φ16 | Φ16 | Φ16 | |
| 225 Micron FELT Socks 2.75“ | x 1 | x 1 | x 1 | x 1 | |
| Filtration Sponge | x 2 | x 2 | x 2 | x 2 | |
| Carbon Pellets | ✓ | ✓ | ✓ | ✓ | |
| Ceramic Rings | ✓ | ✓ | ✓ | ✓ | |
| EVA Mat | ✓ | ✓ | ✓ | ✓ | |
| Mesh Lid (Optional) |
Mesh Lid | ✓ | ✓ | ✓ | ✓ |
| Cabinet (Optional) |
Cabinet Model | - | - | PB1818 | - |
| Dimensions | - | - | 450 x 450 x 810mm | - | |
| - | - | 17.7"×17.7"×31.9" | - | ||
| Material | - | - | 18mm Particle Board, PVC Laminated | - | |
| Color | - | - | WHT-White, BLK-Black, ASP-Aspen | - | |
| Product Model | AIO 35.2 | AIO 50.3 | AIO 65.4 | |
|---|---|---|---|---|
| Aquarium | Dimensions (Length x Width x Height) |
600 x 500 x 450mm | 900 x 500 x 450mm | 1200 x 500 x 450mm |
| 23.6"×19.7"×17.7" | 35.4"×19.7"×17.7" | 47.2"×19.7"×17.7" | ||
| Glass Thickness | 8mm (5/16") | 10mm (2/5") | 10mm (2/5") | |
| Water Height | 435mm/17.1" | 435mm/17.1" | 435mm/17.1" | |
| Aquarium Volume | 125 L/33 gals | 186 L/49.1 gals | 249 L/65.8 gals | |
| Aquarium Weight | 34.0 kg / 75.0 lb | 59.0 kg / 130.1 lb | 65.0 kg / 143.3 lb | |
| Glass Material | Ultra-clear glass | |||
| Transmittance | 91% | |||
| Filtration Chamber | 600 x 120 x 450mm | 900 x 120 x 450mm | 1200 x 120 x 450mm | |
| 23.6"×4.7"×17.7" | 35.4"×4.7"×17.7" | 47.2"×4.7"×17.7" | ||
| Filter Sock Chamber | 81 x 120 x 450mm | 81 x 120 x 450mm | 161x120x450mm |
|
| 3.2"×4.7"×17.7" | 3.2"×4.7"×17.7" | 6.3"×4.7"×17.7" | ||
| Filter Media/Skimmer Chamber | 101 x 120 x 450mm | 154 x 120 x 450mm | 150 x 120 x 450mm |
|
| 4"×4.7"×17.7" | 6.1"×4.7"×17.7" | 5.9"×4.7"×17.7" | ||
| Pump Chamber | 140 x 120 x 450mm | 300 x 120 x 450mm | 221 x 120 x 450mm | |
| 5.5"×4.7"×17.7" | 11.8"×4.7"×17.7" | 8.7"×4.7"×17.7" | ||
| Directional Nozzle | 1 | 2 | 2 | |
| Return Hose | Φ16 | Φ24 | Φ24 | |
| EVA Mat | 1 | 1 | 1 | |
| Filtration | Filter Socks | 70mm/2.75" x 2 | 70mm/2.75" x 2 | 70mm/2.75" x 4 |
| Filtration Sponge | 2 | 2 | 2 | |
| Bio ball | 24 pcs | 24 pcs | 48 pcs | |
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm PVC Laminated Wood Particle Board | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
| SUS304 Hinges | ||||
| Leveling Feet | ||||
